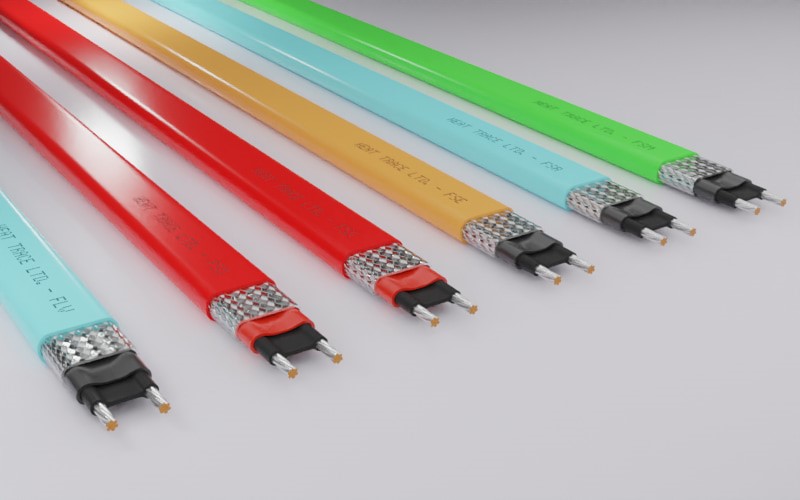

UK Manufactured - Self-Regulating Heating Cables

Self-regulating heating cables have become the most common form of electric heat tracing cable used in the world today.

Benefits

·  Automatically adjusts heat output in response to increasing or decreasing pipe temperature

·  Inherently temperature safe

·  Suitable for use in safe, hazardous and corrosive areas

·  Available up to 277 volts

Self-regulating heating cables within the following ranges:

• Temperature rages up to 250°C withstand temperature
• Output up to 100 W/m of output
• Voltage 12v – 277v
• Circuit lengths to 205m
• Certification: Zone 1 / 11 T6 – T3

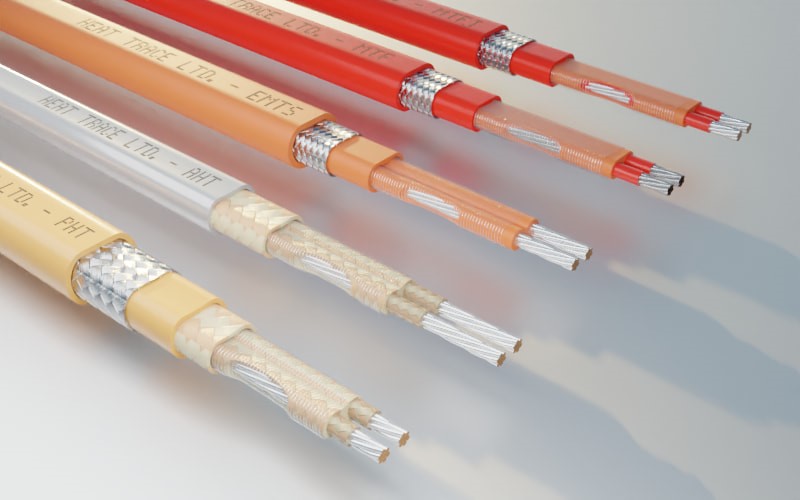

Constant Wattage Heating Cables

Constant power heating cables have been produced for over 40 years.

The constant wattage heating cable consists of a number of heating zones and can be cut to length in sections of the contact distance to the required length. When cutting into lengths, the heating cable circuit will be interrupted up to the next contact point which can be used as a cold lead.

Benefits

·  Constant wattage cables offer a very flexible solution for certain applications where this is beneficial.

·  Predictable outputs.

·  Suitable for use in safe, hazardous and corrosive areas

·  Available up to 277 volts


Constant wattage heating cables within the following ranges:

• Temperature rages up to 425°C withstand temperature
• Output up to 200 W/m of output
• Voltage 12v – 277v
• Circuit lengths to 205m
• Certification: Zone 1 / 11 T6 – T3

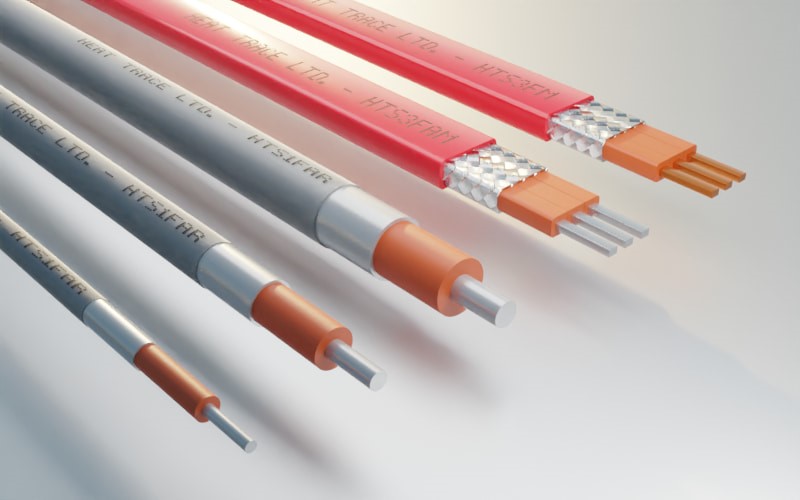

Series Resistance Heating Cables

Series resistance heating cables offer solutions for multiple applications.

A series heating cable is made of a run of resistance wire, insulated and enclosed in a protective jacket. It is powered at a specific voltage and the resistance to generate the watts / m require for any given application.

This was the very first electrical heating cable an is time proven and robust. Versatile – simple and predictable.

Benefits

• Constant power output per meter

·  Circuit lengths of multi-kilometres

• Steam purging resistant, suitable for high temperatures
  up to +600 °C
• Time proven simple installation
• Highly resistant to almost all industrial chemicals and solvent


Series resistance heating cables within the following ranges:

• Temperature rages up to 600°C withstand temperature
• Output up to 200 W/m + of output
• Voltage 12v – 5000v +
• Circuit lengths to multi kilometre
• Certification: Zone 1 / 11 T6 – T3
