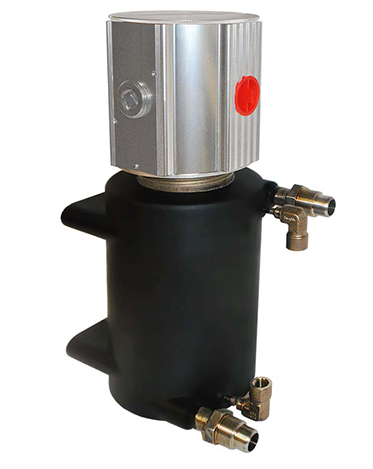

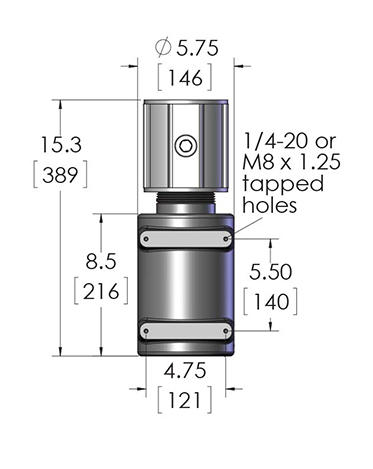

Universal Solvent Heater

Specifications:

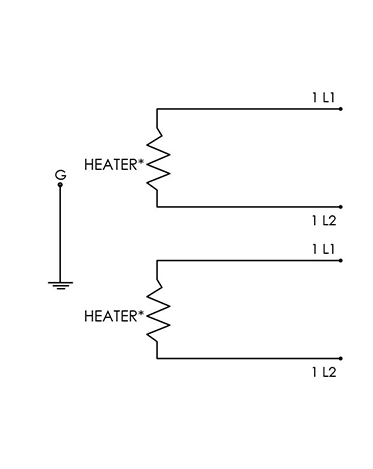

Power:

• 6 kW Total to 8 kW Total
• Voltage Range: 208 - 480 V
• Max Line Current: 30 A per circuit

Tubing (Solvent Tube):

• .750” OD (3/4") (19.1 mm)
• .065” Wall (1.7 mm)
• Overall Process Tube Length: 115.5” (2934 mm)
• 316L Stainless Steel, Passivated & Electro-Polished

Tubing (Cooling Tube):

• .250” OD (1/4") (6.3 mm)
• .035” Wall (0.9 mm)
• Overall Process Tube Length: 86.25” (2190 mm)
• 316L Stainless Steel
• Max Pressure: 3100 psi (213 bar)

Enclosure:

• NEMA 7 (explosion-proof)
• (Class 1, Div. 1 and 2, Groups B, C and D)

Max Working Temperature:

• 392°F (200°C)
• Published temperatures are for housing at 12 o’clock position;
• Higher temps may be possible at 6 o’clock position. See factory for details.

Sensors:

• Two J-Type Thermocouples (cast in)
• One J-Type Thermocouple (removable)
• Snap Action High Limit Switch (with auto reset)

Fittings:

• Solvent Tube: Flaretek®-Compatible or Swagelok® VCR
• Cooling Tube: NPT or Swagelok® VCR

Available Accessories:

• Insulating Jackets
• Compression Fittings
